Project Big Bore

1 2 3 4

Step 19 : Try and re-enforce the area where the swing arm will be.

Because it will be mono shock all forces will pivot around this area.

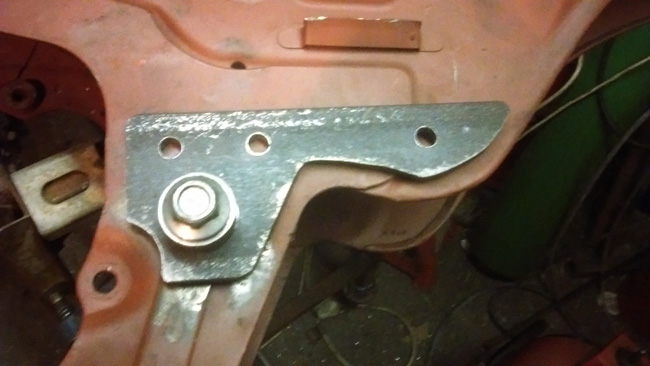

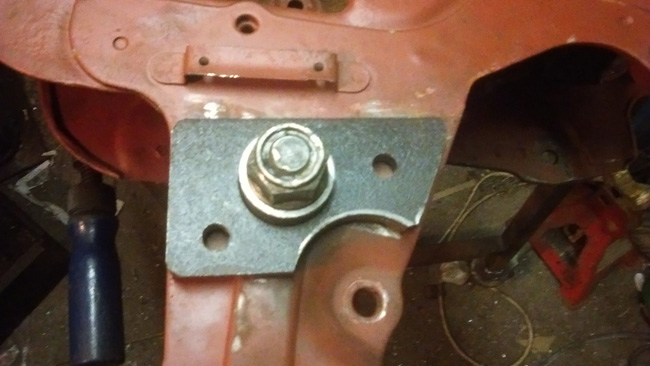

Left Swing Arm Plate Right Swing Arm Plate

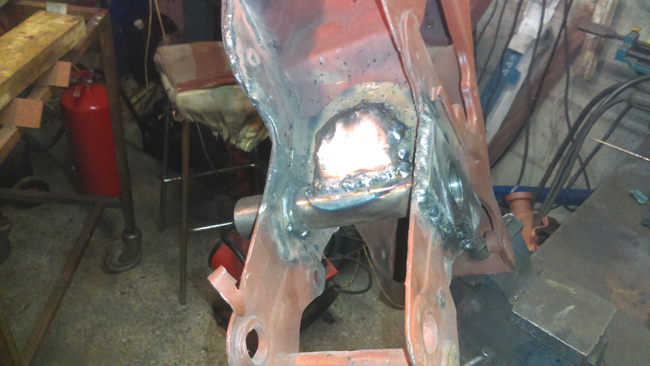

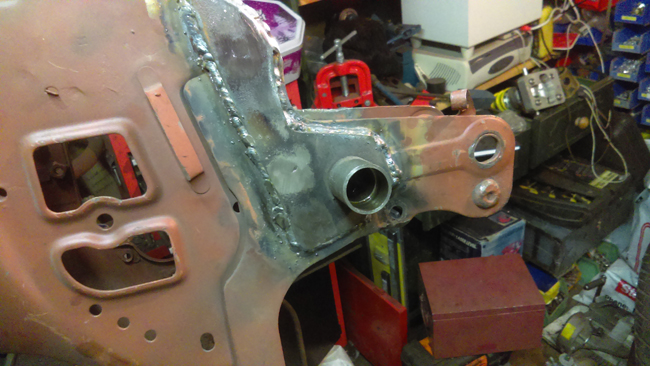

Right Swing Arm Plate Welded Frame Welded

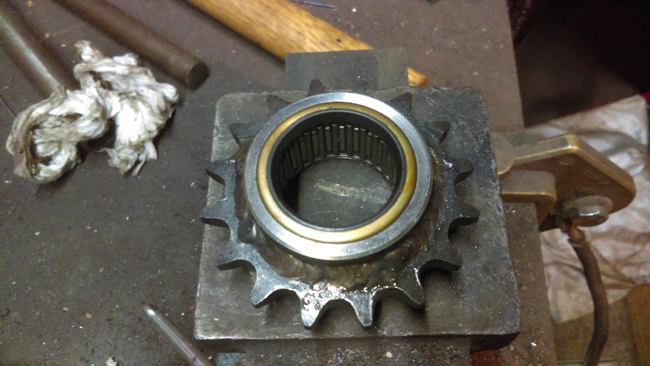

Step 20 : Make an Idler Sprocket for Chain to Clear Swing Arm Pivot

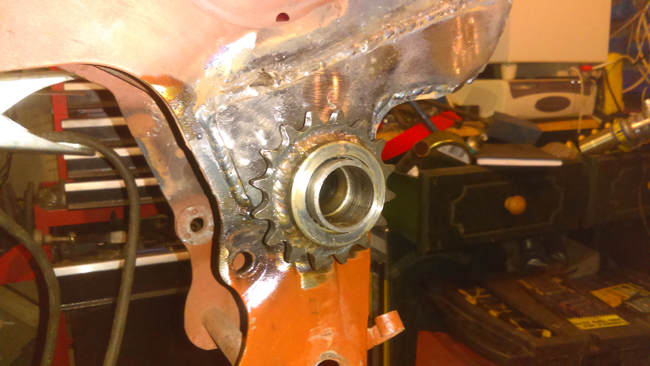

Chain Idler Frame with Idler in Place

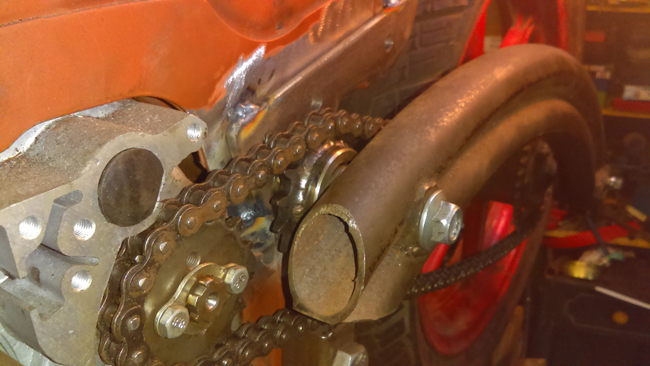

Frame with Idler in Place and Swing Arm

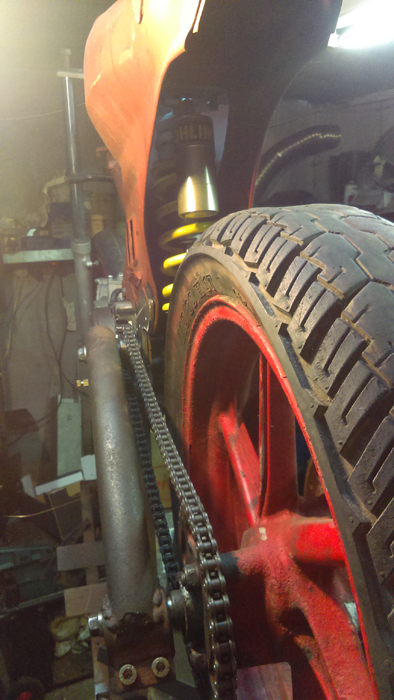

Frame with Idler, Shock and Swing Arm in Place
