After building the Cub 90 sidecar and the trike I wanted to build a solo machine that I could blast around the back roads on. I didn't really document the building of my other projects and they were concieved on the fly. I'd like to keep a log of this project and record how many hours in the shed I actually put in. I have a fair idea what I want to do but nothing is set in stone. Most of my budget for this project is the engine, I had the other bikes in the shed. I've had no formal training on any of the equipment used (just books). I'm not a welder, fitter, definitely not a web designer, just a bloke in a shed experimenting and I'm learning as I go. If anyone has any queries / ideas please contact me at aidan.engineering@gmail.com. Hope you like the story.

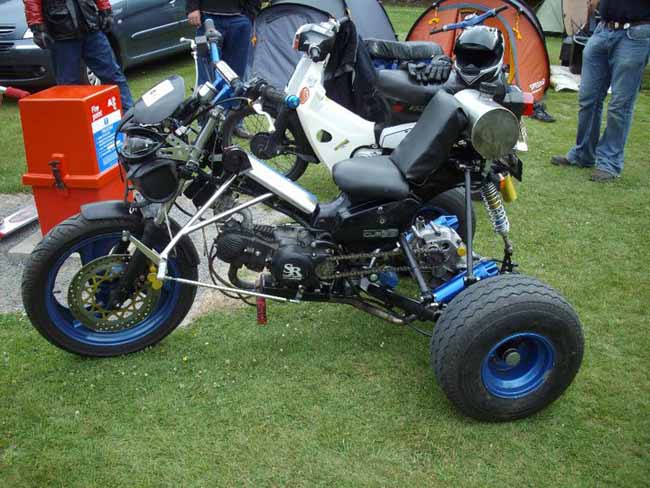

sidecar trike



Step 1 : Christmas comes early. Fresh delivery of the yx 165 engine, carb, oil cooler etc.

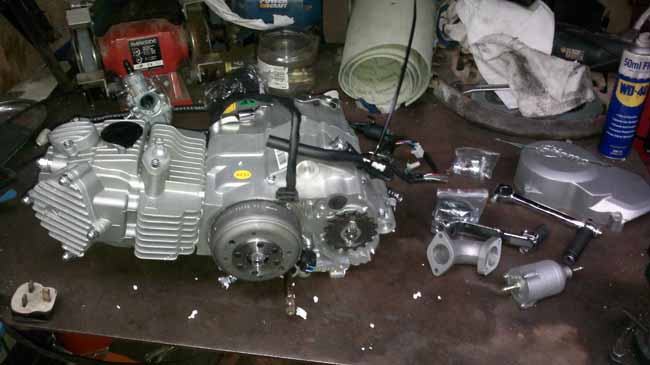

yz165 engine



Step 2 : Get a donor frame, a 1994 Honda Cub 90

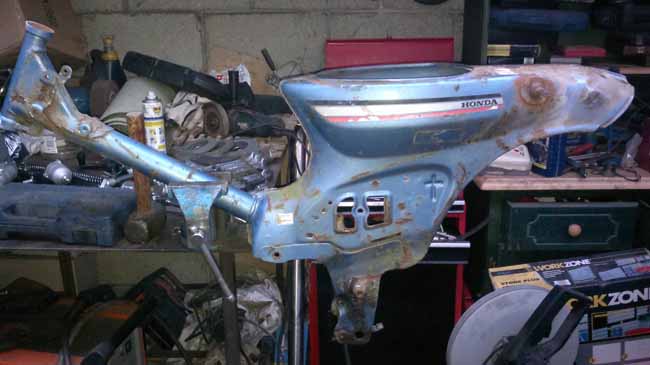

cub 90 frame raw



Step 3 : Get the frame sand blasted and primed to check for rust and holes. Frame gets the all clear.

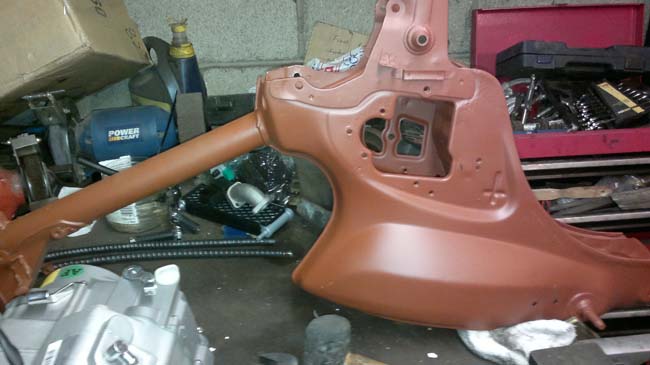

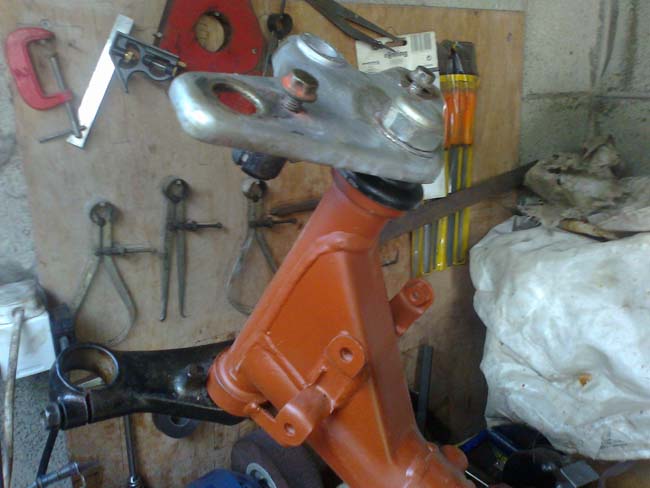

primed frame



Problem 1: Engine won't fit. The Engine Breather pipe outlet and raised hump is hitting the frame.

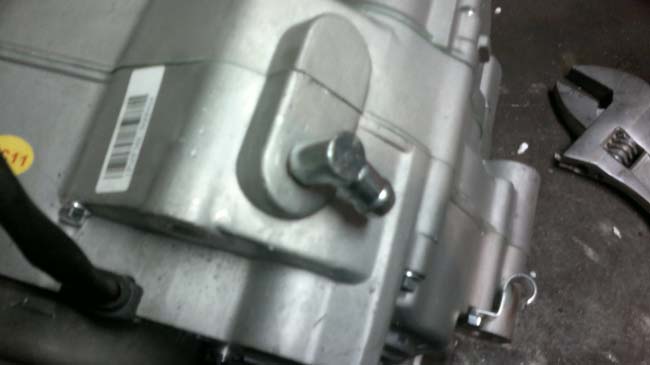

engine fouling frame fouling

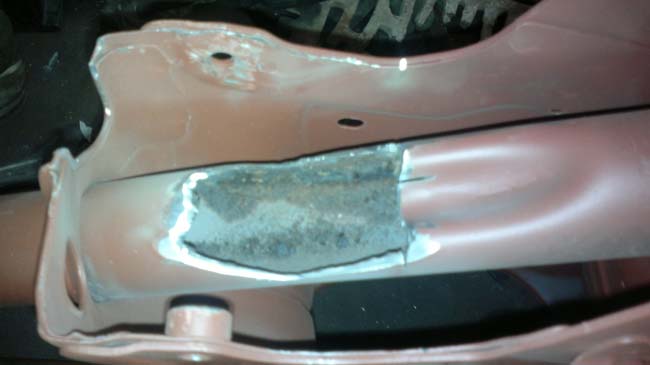

Problem 1 Solution: Some of my favorite tools and a bit of time. Will weld in replacement piece later.

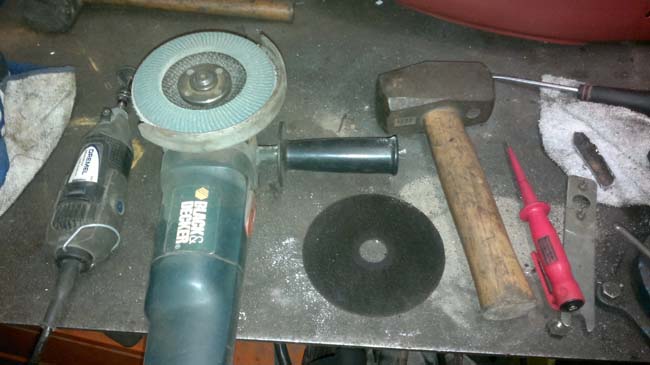

tools of the trade frame hack



Success !!!!!

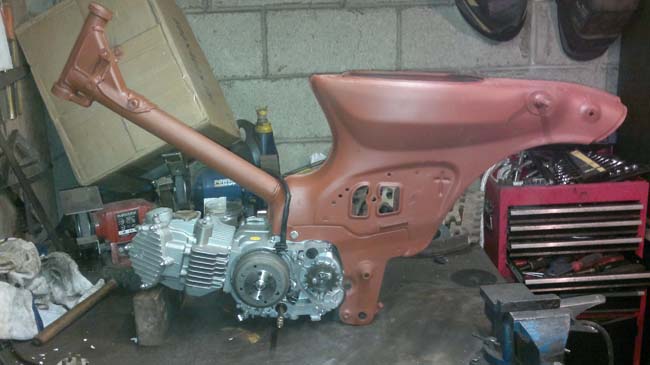

Success engine in



Donor Bike number 2. Honda NSR 80

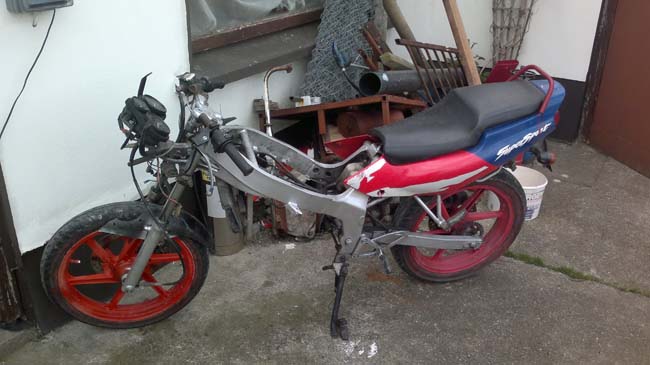

Donor NSR 80



Step 4 : Try the front end for size

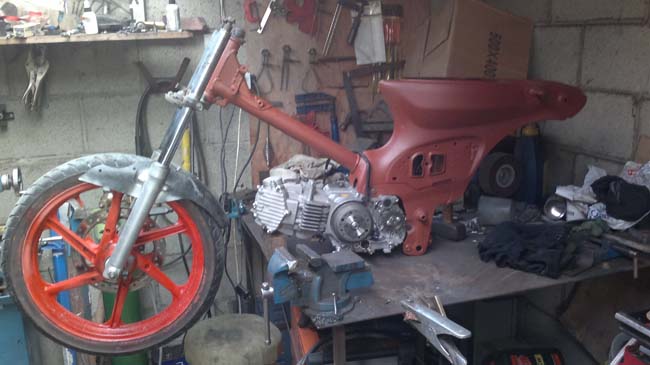

NSR Front end try out



Problem 2: NSR 80 Headstock Spindle is 20mm to short. Unlike the NSR 125 that just needs a 4mm washer.



Problem 2 Solution: Cut the Headstock spindle and machined up a 20mm insert and a 15mm diameter rod for the centre to keep everything in line.

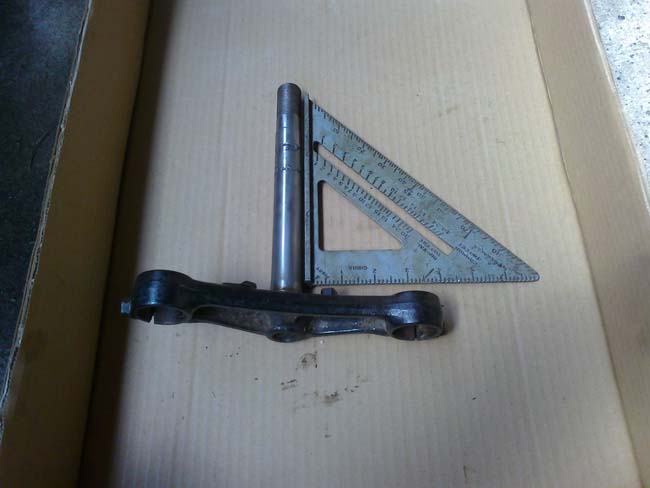

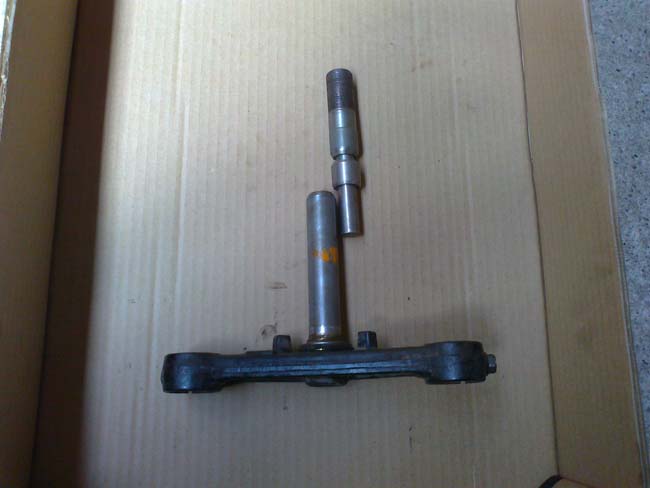

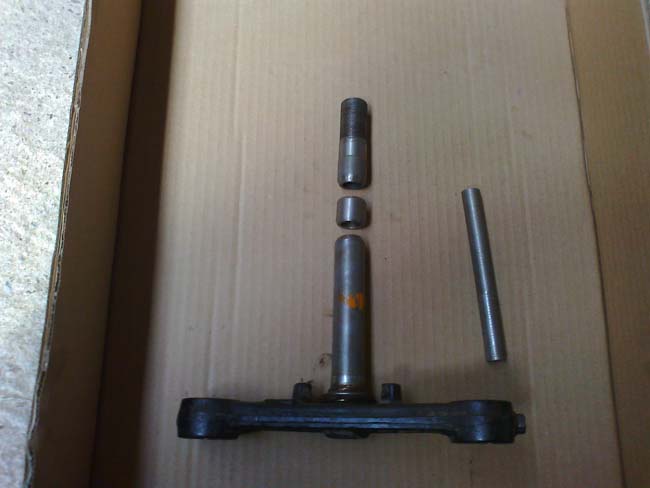

Headstock spindle cut to pieces All the pieces ready for welding



A quick spin on the lathe to bring the weld in-line with the rest of the spindle and Bob's your uncle ready to go.

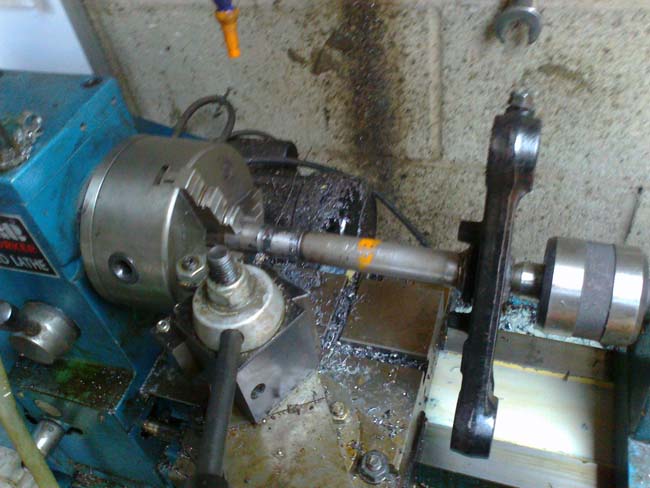

Headstock spindle on the lathe Finished headstock spindle

New Headstock Spindle Fitted



Step 5 : Mock up the back end to try and get an idea where to put the back wheel

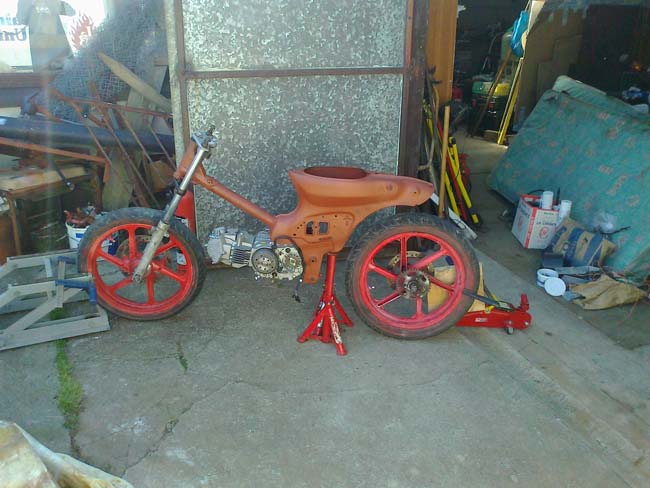

Mock up the back end
